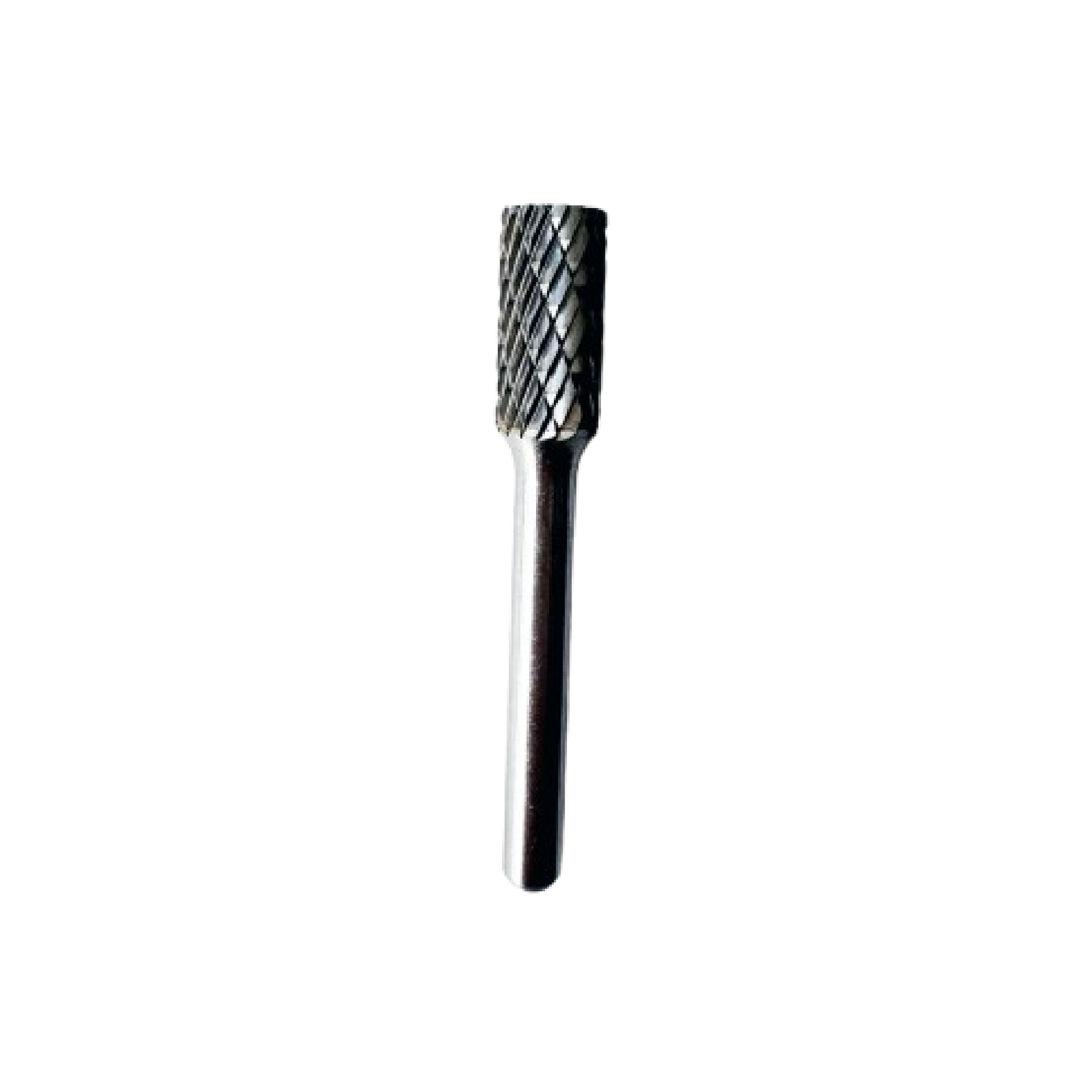

TBS Tungsten Carbide Rotary Burr Cylinder Plain End (Double Cut)
Our premium-grade tungsten carbide burrs are designed for precision cutting, grinding, and deburring. Whether you work with metal, wood, or plastic, these burrs provide clean and smooth finishes, reducing the need for additional sanding. With a universal 6mm shank**, they fit most rotary tools, die grinders, and drills. Built for efficiency, they generate less heat, ensuring longer tool life and consistent performance.
**Some selected shape available in 3mm shank.
Key Features:
- Material: Made of Tungsten Carbide
- Application: Wood, metal, plastic, stone, stainless Steel
- Size: Refer to the table
- Cut: Double Cut
- Usage: Grinding, Shaping, Deburring
- Compatible Tool: Rotary Tool, Drill, die grinder and straight die grinder
- Shape : With a flat end and no cutting face on either side.
- Uses : Commonly used with small lathes and die grinders.
Description

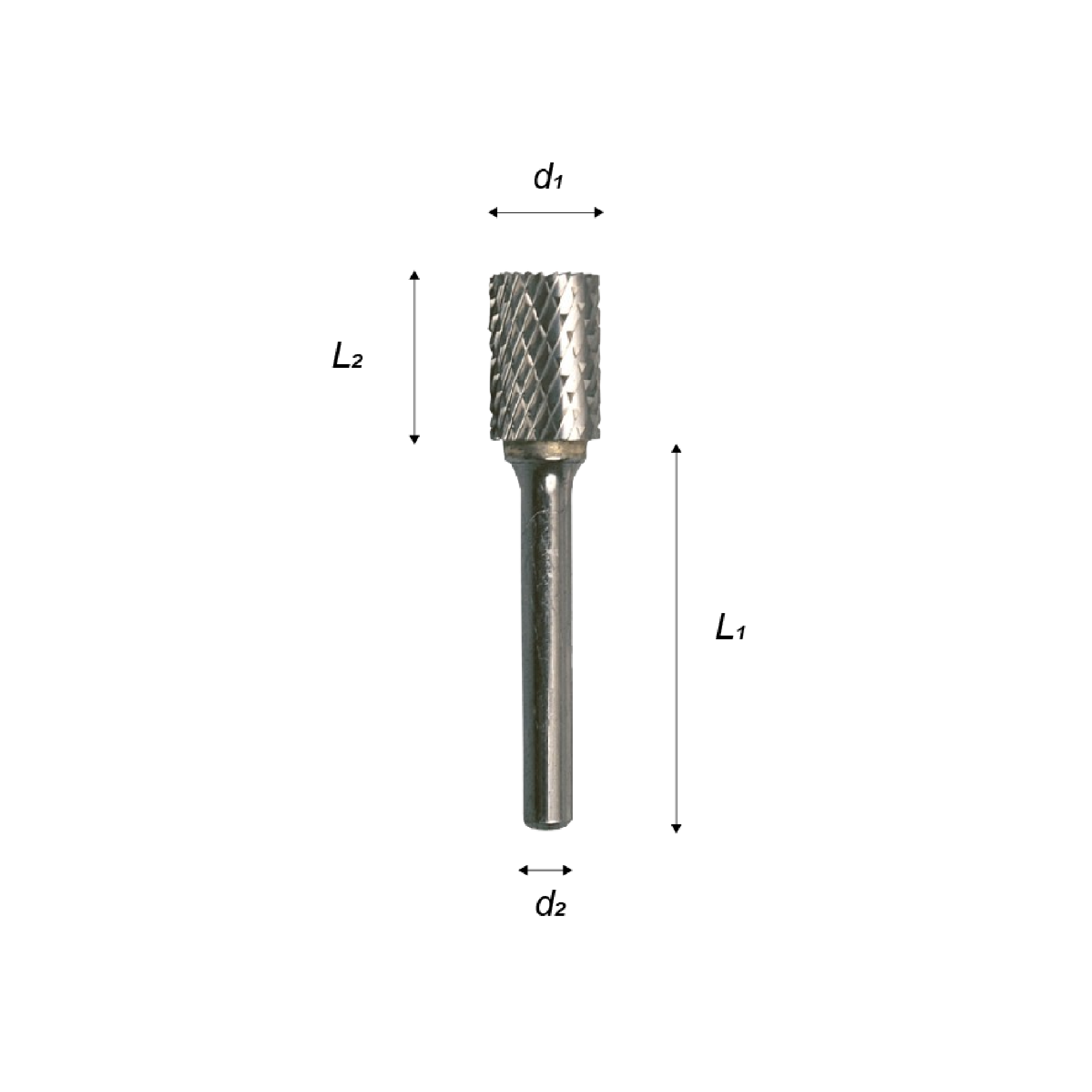

| MODEL NO | CUT TYPE | CUT DIAMETER d1 (mm) | CUT LENGTH L2 (mm) | SHANK DIAMETER d2 (mm) | SHANK LENGTH L1 (mm) |
| A-0314-X | Double Cut | 3 | 14 | 3 | 45 |
| A-0616-X | Double Cut | 6 | 16 | 6 | 45 |
| A-0820-X | Double Cut | 8 | 20 | 6 | 45 |
| A-1020-X | Double Cut | 10 | 20 | 6 | 45 |
| A-1225-X | Double Cut | 12 | 25 | 6 | 45 |
